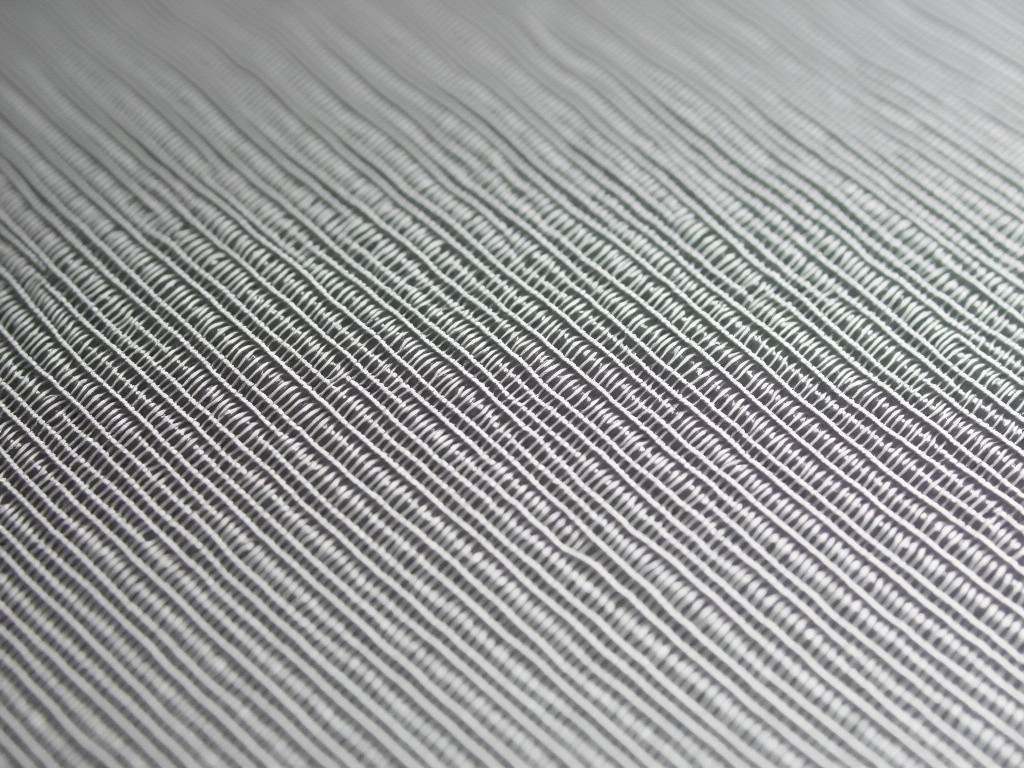

China Stainless Steel Sieve Mesh
China Stainless Steel Sieve Mesh
Stainless steel sieve mesh is a precision-engineered filtration and classification material used across industries requiring reliable particle separation. Made from corrosion-resistant alloys, it maintains dimensional stability under mechanical stress and environmental exposure. This product page details the technical specifications, material options, and application considerations for industrial buyers evaluating sieve mesh for process integration.
Material Composition and Corrosion Resistance
The base material for stainless steel sieve mesh is typically AISI 304 or 316L grade, selected based on the chemical exposure and mechanical demands of the application. AISI 304 offers adequate resistance to atmospheric corrosion and mild acids, while 316L includes molybdenum for enhanced protection against chlorides and acidic environments common in food processing, chemical handling, and marine settings. Wire diameter and weave pattern are chosen to balance open area with structural integrity, ensuring minimal deformation under sustained load.
Weave Types and Open Area Characteristics
Sieve mesh is manufactured in plain Dutch, twill Dutch, and reverse plain weaves, each affecting flow dynamics and particle retention. Plain weave provides symmetrical opening dimensions and is common in general filtration. Twill Dutch weave features a tighter warp and looser weft, increasing strength and reducing blinding in viscous fluids. Reverse plain weave maximizes open area while maintaining fine filtration capability, ideal for high-throughput drying or grading operations. Open area percentages typically range from 30% to 60%, directly influencing pressure drop and efficiency.
Standard Dimensions and Tolerance Control
Mesh count (wires per linear inch) and micron rating define the separation threshold, with standard ranges from 4 mesh (4.76 mm openings) to 400 mesh (38 microns). Tolerances are held to ±5% for wire diameter and ±3% for aperture size under ISO 9044:2015 equivalents, ensuring repeatable performance in laboratory and industrial testing. Custom dimensions are available upon request, including non-standard widths, lengths, and edge treatments such as hemmed or welded borders for frame integration.
Applications in Industrial Processing
In pharmaceutical manufacturing, stainless steel sieve mesh is used for dry powder classification where contamination risk must be minimized and cleaning validation is required. The smooth surface finish and passivation capability support compliance with GMP and FDA 21 CFR Part 211. In chemical processing, it serves as a catalyst support medium in fixed-bed reactors, where mechanical strength and resistance to thermal cycling prevent catalyst attrition. In food production, it enables precise grading of grains, spices, and powders, with 316L construction preventing metallic contamination in acidic products like tomato sauce or citrus juices.
Quality Assurance and Testing Protocols
Each batch undergoes dimensional verification using optical comparators and laser scanning to confirm aperture uniformity. Tensile testing validates wire strength, typically exceeding 500 MPa for 304 and 550 MPa for 316L grades. Surface finish is assessed via profilometry to ensure Ra values below 0.8 microns for sanitary applications. Chemical composition is verified through spark OES or XRF to confirm alloy compliance. Inspection reports, including mill test certificates and conformity declarations, are available upon request.
Customization and Integration Support
Buyers can specify mesh dimensions, wire diameter, weave pattern, edge finish, and material grade to match equipment interfaces. Common customizations include conical forming for hopper inserts, circular die-cutting for cartridge filters, and frameless rolls for continuous coating lines. Technical support is available to calculate expected pressure drop based on fluid viscosity, flow rate, and open area, helping avoid over-specification or under-performance in system design.
| Parameter | Typical Range / Value | Notes |
|---|---|---|
| Material Grade | AISI 304, 316L | 316L preferred for chloride exposure |
| Mesh Count | 4 to 400 mesh | Custom counts available |
| Wire Diameter | 0.05 mm to 1.0 mm | Dependent on mesh count and weave |
| Open Area | 30% to 60% | Affects flow rate and pressure drop |
| Tensile Strength | ≥500 MPa (304), ≥550 MPa (316L) | Minimum values; actual varies by wire |
| Surface Finish (Ra) | ≤0.8 μm | For sanitary and pharmaceutical use |
Technical consultation is recommended prior to selection to ensure compatibility with process conditions, cleaning methods, and mechanical mounting. Factors such as thermal expansion, vibration exposure, and cleaning agent chemistry can influence long-term performance. Providing detailed operating parameters — including temperature range, pH, particle size distribution, and flow dynamics — enables accurate specification and reduces the risk of premature failure or process inefficiency.
