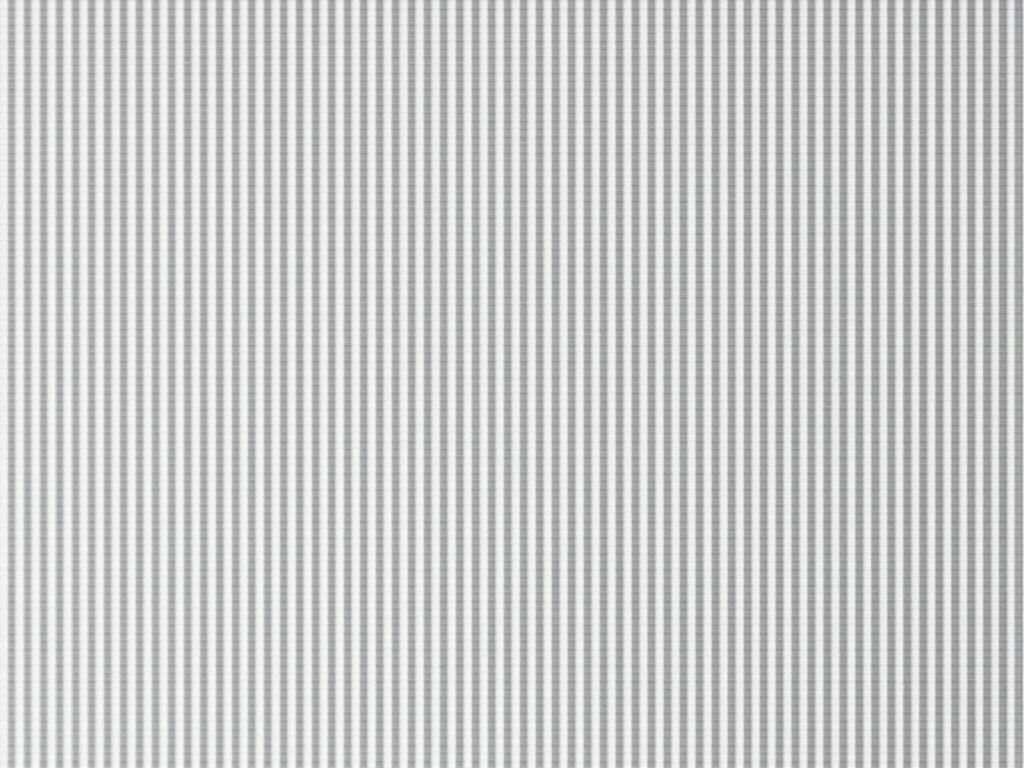

Stainless steel window screen mesh serves as a critical component in architectural, industrial, and environmental control systems where corrosion resistance, mechanical strength, and long-term dimensional stability are required. Unlike standard aluminum or fiberglass alternatives, stainless steel mesh maintains structural integrity under prolonged UV exposure, temperature cycling, and contact with aggressive pollutants, making it suitable for demanding installations in coastal, industrial, and high-humidity environments.

This page details the technical characteristics, material options, weaving patterns, and quality control parameters that define stainless steel window screen mesh produced for B2B applications. Information is presented to support specification writing, supplier evaluation, and risk mitigation in procurement decisions.

The base material for stainless steel window screen mesh is typically austenitic grade 304 or 316 stainless steel wire, selected based on environmental exposure levels. Grade 304 provides adequate resistance to atmospheric corrosion in inland urban settings, while grade 316, containing 2-3% molybdenum, offers superior protection against chloride-induced pitting in marine environments or areas with frequent de-icing salt exposure.

Wire diameter ranges from 0.18 mm to 0.50 mm, with tensile strength values between 500–750 MPa for cold-drawn wire in the annealed condition. Elongation at break typically exceeds 40%, ensuring ductility during weaving and installation without cracking. Surface finish is bright annealed unless otherwise specified, with no coatings or platings applied that could degrade under UV or thermal cycling.

Two primary weave patterns are used: plain weave and twill weave. Plain weave features a simple over-one-under-one intersection, providing symmetrical porosity and equal tensile strength in both warp and weft directions. Twill weave, where each warp wire passes over two then under two weft wires, delivers higher closed area per opening, improved impact resistance, and a smoother surface finish suitable for applications requiring reduced dirt accumulation.

Mesh count, defined as the number of openings per linear inch, ranges from 10×10 to 20×20 for standard window screening, with open area percentages varying accordingly. For example, a 16×16 mesh with 0.25 mm wire yields approximately 70% open area, while a 20×20 mesh with 0.20 mm wire achieves ~76% open area. These values directly influence airflow resistance, insect exclusion efficiency, and visibility.

Standard roll widths are 0.91 m, 1.0 m, and 1.22 m, with custom widths available up to 2.0 m upon request. Length per roll typically ranges from 20 m to 50 m, depending on wire diameter and mesh count to maintain manageable roll weight (usually under 25 kg). Edge finishes include selvaged (looped) or cut edges, with selvaged edges preferred for fray resistance during handling and installation.

Dimensional tolerances adhere to ASTM E2016 standards: wire diameter ±0.01 mm, mesh count ±2 openings per inch, and roll width ±3 mm. Flatness is maintained within 5 mm deviation over a 1 m length when measured under zero tension. These tolerances ensure consistent performance in automated framing systems and reduce installation rework.

Quality assurance begins with incoming wire inspection, including chemical analysis (via spark spectrometry) and mechanical testing (tensile strength, elongation). During weaving, real-time monitoring detects wire breaks, mispicks, or tension variations. Finished mesh undergoes dimensional verification using optical comparators and open area calculation via image analysis software.

Corrosion resistance is validated through salt spray testing (ASTM B117) for grade 316 samples, typically exceeding 500 hours without red rust. Visual inspection under 10x magnification ensures surface continuity and absence of shading or thick spots. All test records are retained for traceability and made available to customers upon request.

Stainless steel window screen mesh is specified in prefabricated curtain wall systems where long-term maintenance access is limited, reducing lifecycle costs associated with replacement. In food processing facilities, its non-toxic, non-reactive surface complies with hygiene standards and withstands frequent washdowns with alkaline or acidic cleaners.

In data centers and telecommunications shelters, the mesh provides EMI shielding attenuation when properly grounded, while maintaining adequate airflow for cooling. Marine vessels and offshore platforms use grade 316 mesh in ventilation intakes to resist saltwater spray and biofouling. Each application leverages the material’s inherent properties rather than relying on coatings or treatments that may degrade over time.

Standard offerings include 304 and 316 grades in plain or twill weave, mesh counts from 10×10 to 20×20, and wire diameters from 0.18 mm to 0.50 mm. Custom options are available for non-standard mesh counts (e.g., 8×8, 24×24), alternative alloys (such as 316L for weldability), or width-specific rolls to match extrusion profiles.

To receive a quotation, provide: required material grade, mesh count, wire diameter, weave pattern, roll width, length per roll, edge finish, and destination for freight calculation. Samples are available upon request, typically cut to 300 mm × 300 mm sections with material certification. Lead time for standard items is 2–3 weeks; custom orders vary based on material availability and tooling requirements.

For technical inquiries, sample requests, or specification support, contact our engineering team. Provide your project requirements to receive a detailed response including material certification, test reports, and packaging options.
