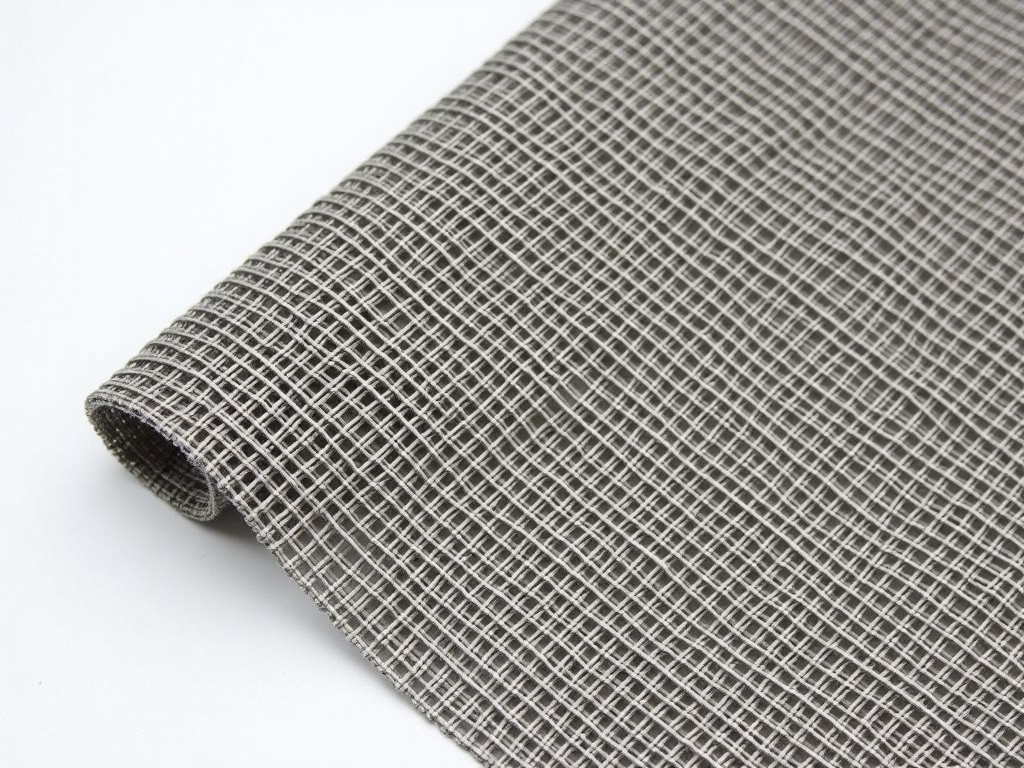

Dutch Weave Stainless Steel Filter Cloth Mesh
Dutch Weave Stainless Steel Filter Cloth Mesh
Dutch weave stainless steel filter cloth mesh is a precision filtration medium engineered for applications requiring high dirt-holding capacity, fine particle retention, and structural integrity under pressure. Unlike plain or twill weaves, the Dutch weave uses a higher density of warp wires with a coarser shute wire arrangement, creating a tapered flow path that captures contaminants progressively through depth filtration rather than surface sieving. This construction allows for efficient removal of submicron particles while maintaining low pressure drop and extended service life in demanding industrial environments.
Technical Characteristics of Dutch Weave Construction
The defining feature of Dutch weave is the asymmetric wire diameter and count between warp and shute directions. Typically, finer warp wires are woven closely together, while heavier shute wires are spaced farther apart, forming a wedge-shaped pore structure that narrows from the upstream to downstream face. This gradient pore size enables the capture of particles smaller than the nominal pore rating through mechanical entrapment and adhesion within the filter matrix. The resulting mesh exhibits high tensile strength in the warp direction due to the dense wire packing, while the shute direction provides flexibility and flow distribution. Common stainless steel grades used include 304, 316L, and 316Ti, selected based on corrosion resistance requirements in chemical, pharmaceutical, or food processing environments.
Filtration Performance and Flow Dynamics
Dutch weave mesh achieves filtration ratings typically ranging from 1 to 50 micrometers, depending on wire diameter and weave tightness, with absolute retention capabilities validated through standardized test methods such as ISO 19438 or ASTM F795. The depth filtration mechanism allows the mesh to retain significantly more contaminants per unit area than surface filters of comparable nominal rating, reducing the frequency of cleaning or replacement in continuous operations. Pressure drop across the filter remains relatively low even at high particulate loads due to the tortuous flow path design, which minimizes channeling and promotes even distribution of flow. These characteristics make Dutch weave particularly suitable for pre-filtration, catalyst recovery, and polymer extrusion screening where consistent particle removal and long runtime are critical.
Material Selection and Customization Options
Material choice is dictated by the chemical compatibility, temperature exposure, and mechanical demands of the specific process. 316L stainless steel is commonly selected for its resistance to pitting and crevice corrosion in chloride-containing environments, while 304 offers cost-effective performance in less aggressive conditions. For high-temperature applications exceeding 400°C, 316Ti or duplex grades may be specified to maintain structural stability and oxidation resistance. Mesh parameters such as warp/shute wire diameter, pick count, and weave tightness are customized according to required filtration efficiency, pressure tolerance, and cleanability. Edge treatments including hemmed, selvedged, or welded borders are available to prevent fraying and facilitate integration into filter housings or cartridge assemblies.
Typical Specifications and Parameters
| Parameter | Typical Range | Notes |
|---|---|---|
| Warp Wire Diameter | 0.05–0.30 mm | Finer wires for tighter filtration |
| Shute Wire Diameter | 0.10–0.60 mm | Coarser wires for structural support |
| Warp Count | 50–300 wires/inch | High density for pore formation |
| Shute Count | 10–50 wires/inch | Lower density for flow efficiency |
| Filtration Rating | 1–50 µm | Dependent on weave tightness |
| Tensile Strength (Warp) | >1000 MPa | Due to dense wire packing |
| Operating Temperature | -200 to 450°C | Grade-dependent limits |
Industrial Applications and Process Integration
Dutch weave filter cloth is widely used in industries where precise particle control and process continuity are essential. In chemical manufacturing, it serves as a reliable barrier for catalyst fines recovery in polymerization reactors, preventing downstream contamination and enabling catalyst reuse. In pharmaceutical production, the mesh supports sterile filtration of biologics and active pharmaceutical ingredients, where consistent retention of submicron particulates and extractables is required to meet regulatory standards. Food and beverage processors utilize Dutch weave for clarification of juices, wines, and edible oils, benefiting from its ability to remove haze-forming particles without stripping flavor compounds or nutrients. The mesh is also employed in automotive paint filtration systems to remove agglomerated pigments and impurities that could cause surface defects in coating applications.
Quality Assurance and Inspection Protocols
Each roll of Dutch weave mesh undergoes dimensional verification, wire diameter measurement, and weave integrity inspection to ensure conformity with specified parameters. Porosity and air permeability are tested using standardized methods to confirm consistent flow characteristics across production batches. For critical applications, bubble point testing or liquid challenge tests with calibrated particle suspensions may be performed to validate retention efficiency at the claimed micron rating. Visual inspection under magnification detects defects such as broken wires, misweaves, or irregular tension that could compromise performance. All inspection data is traceable to the raw material lot and production batch, supporting compliance with ISO 9001 and industry-specific quality systems.
